#3 ) Db Connection 4개 연동하기 with MyBatis

Mybatis로 connection을 1개 연동했다.

이제 개발서버 DB 2개, 운영서버 DB 2개 총 4개의 DB Connection을 연동해서 간단한 SELECT문을 긁어오게끔 해보자

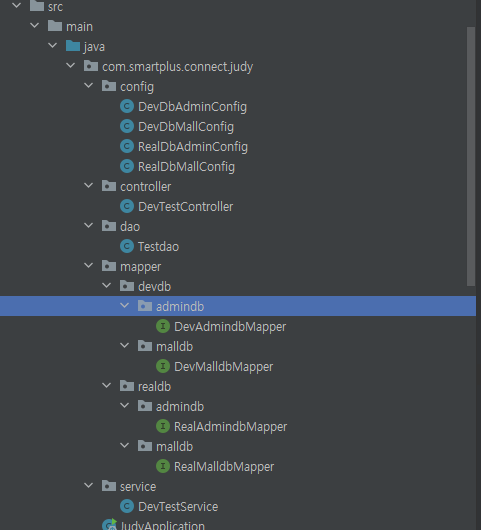

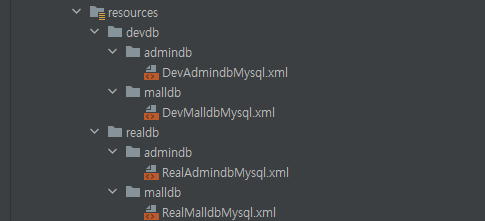

1개를 연동했을 때 보다 폴더와 패키지가 추가되었다.

원래 realdb / devdb 이렇게만 폴더나 패키지를 나눴는데 connection이 꼬이는 일이 발생해서

저렇게 세부적으로 나눠서 mapper파일을 넣어놓았다.





DevDbAdminConfig.java

package com.smartplus.connect.judy.config;

import com.zaxxer.hikari.HikariConfig;
import com.zaxxer.hikari.HikariDataSource;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.env.Environment;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;

@Configuration
@MapperScan(value="com.smartplus.connect.judy.mapper.devdb.admindb", sqlSessionFactoryRef="devdbadminSqlSessionFactory")
//@EnableTransactionManagement
@Slf4j
public class DevDbAdminConfig {
    @Autowired
    private Environment env;

    private static final String prefix = "spring.devdbadmin.datasource.hikari.";

    @Bean(name = "devdbadminSource", destroyMethod = "close")
    public HikariDataSource devdbadminSource() {
        HikariConfig config = new HikariConfig();
        config.setUsername(env.getProperty(prefix+"username"));
        config.setPassword(env.getProperty(prefix+"password"));
//    	config.setDriverClassName(env.getProperty(prefix+"driverClassName"));
        config.setJdbcUrl( env.getProperty(prefix+"jdbc-url") );
        config.setMaxLifetime( Long.parseLong(env.getProperty(prefix+"max-lifetime")) );
        config.setConnectionTimeout(Long.parseLong( env.getProperty(prefix+"connection-timeout")));
        config.setValidationTimeout(Long.parseLong( env.getProperty(prefix+"validation-timeout")));


        config.addDataSourceProperty( "cachePrepStmts" ,  env.getProperty(prefix+"data-source-properties.cachePrepStmts"));
        config.addDataSourceProperty( "prepStmtCacheSize" , env.getProperty(prefix+"data-source-properties.prepStmtCacheSize"));
        config.addDataSourceProperty( "prepStmtCacheSqlLimit" , env.getProperty(prefix+"data-source-properties.prepStmtCacheSqlLimit") );
        config.addDataSourceProperty( "useServerPrepStmts" , env.getProperty(prefix+"data-source-properties.useServerPrepStmts") );


        config = new HikariDataSource( config );
        HikariDataSource dataSource = new HikariDataSource( config );

        return dataSource;
    }

    @Bean(name = "devdbadminSqlSessionFactory")
    public SqlSessionFactory dbadminSqlSessionFactory(@Qualifier("devdbadminSource") DataSource devdbadminSource) throws Exception {

        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(devdbadminSource);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:devdb/admindb/*.xml"));
        return sqlSessionFactoryBean.getObject();
    }

    @Bean(name = "devdbadminSqlSessionTemplate")
    public SqlSessionTemplate dbadminSqlSessionTemplate(SqlSessionFactory devdbadminSqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(devdbadminSqlSessionFactory);
    }




    @Bean(name="devdbadminTransactionManager")
    public PlatformTransactionManager dbadminTransactionManager(@Qualifier("devdbadminSource") DataSource devdbadminSource) {

        DataSourceTransactionManager transactionManager = new DataSourceTransactionManager();
        transactionManager.setDataSource(devdbadminSource);
        return transactionManager;
    }
}

config 파일 중 하나인 DevDbAdminConfig를 보면

@MapperScan(value="com.smartplus.connect.judy.mapper.devdb.admindb", sqlSessionFactoryRef="devdbadminSqlSessionFactory")

MapperScan에서 하기 경로로 스캔하도록 설정하면 그 경로에 있는 Mapper를 사용하는 SQL은 내가 DevDbAdminConfig.java에서 설정한 connection을 이용한다.



이렇게 connection을 구분해줘서 DB와 연동하면 끝!



connection이 구분되서 잘 들어온거 확인 완료!
